The Ultimate Guide to Insert Bearings: Selection, Installation & Maintenance for Agricultural & Industrial Applications

If you work with agricultural equipment, conveyors, industrial fans, or assembly line machinery, you have almost certainly encountered insert bearings (also known as insert spherical bearings or Y-bearings). They are everywhere — and for good reason.

Insert bearings are the workhorses of the industrial world. Even when installation precision is less than perfect or working conditions are far from ideal, these bearings keep running reliably. They are tough, durable, and surprisingly easy to replace — earning their reputation as the "universal adapter" of the bearing world.

But here is the reality: many maintenance professionals and equipment operators treat insert bearings as "fit-and-forget" components. They pick random models, hammer them into place, and leave maintenance to chance. The result? Premature bearing failure, unexpected downtime, and costly replacements.

• This guide covers everything you need to know — from smart selection to proper installation and scientific maintenance. No fluff. Just actionable insights to help you get the most out of your insert bearings.

Why Insert Bearings Are the Go-To Choice for Harsh Conditions

Insert bearings stand out for several structural advantages that make them ideal for demanding applications like agricultural machinery, conveyor systems, and industrial fans:

• Self-Aligning Capability: The outer ring features a spherical outer surface that matches the concave spherical bore of the bearing housing. This design automatically compensates for shaft misalignment caused by installation tolerances or operational vibration — typically up to ±1.5° to 3°. For equipment where precision alignment is difficult, this feature is a game-changer.

• Superior Sealing: Double-sided rubber seals or dust covers come as standard, with some models offering multi-layer sealing structures. These seals effectively block dust, moisture, debris, and crop residues from entering the bearing interior — making insert bearings particularly suitable for outdoor agricultural machinery and dusty workshop environments.

• Easy Installation and Removal: With set screw locking, eccentric collar locking, or lock nut locking mechanisms, insert bearings do not require complex tools or highly skilled labor. Even novices can complete assembly quickly and correctly.

• Robust Load Capacity: The thickened inner ring design improves radial load capacity, allowing insert bearings to handle everything from light-load high-speed applications to medium-load impact conditions.

• Selection: Getting It Right from the Start

Many users make the mistake of selecting insert bearings based solely on size matching. This shortcut often leads to overheating, abnormal noise, and shortened service life. Here is how to choose wisely:

1. Match Sealing to the Environment

• Clean, dry indoor conditions: Standard single-layer rubber seals or dust covers are sufficient.

• Outdoor, dusty, or wet environments: Choose double-lip seals with additional dust covers to block moisture and debris.

• Corrosive conditions: Select anti-rust and corrosion-resistant models.

2. Match Load and Speed Ratings

• Heavy-duty, high-vibration scenarios (harvester headers, heavy conveyors, mining equipment): Choose thickened inner ring bearings with enhanced impact resistance.

• Light-duty, high-speed applications (small fans, textile machines, precision conveyors): Standard precision-grade bearings reduce heat generation and noise.

3. Choose the Right Locking Method

• Set screw locking (UC series): Ideal for low-speed, light-load, low-vibration equipment — simple and fast.

• Eccentric collar locking (UEL series): Designed for high-speed, heavy-duty, high-frequency vibration conditions — provides superior anti-loosening performance.

• Lock nut / adapter sleeve locking (UK series): Suits large shaft diameters and heavy-duty machinery — delivers firm fixation with minimal displacement risk.

4. Understand the Series Codes

• UC series: The most common standalone bearing, used with bearing housings for general light-load applications

• UK series: Tapered bore with adapter sleeve — ideal for heavy loads and high torque, widely used in agricultural machinery.

• UCP series: Pillow block housing + bearing in one unit — direct installation for conveyors and fans.

• UCT series: T-type housing — perfect for confined spaces and small conveyors.

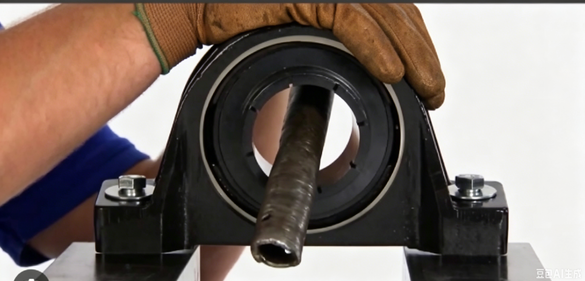

Installation: The Right Way Matters

Statistics show that over 60% of early insert bearing failures result from improper installation. Avoid these common mistakes:

The Hammer Approach: Never strike the bearing end face or outer ring directly with a hard hammer. This deforms raceways, damages steel balls, and causes abnormal noise and shortened life.

The Right Way:

1. Clean thoroughly: Remove all oil, burrs, rust, and debris from the shaft journal and bearing mating surfaces.

2. Use proper tools: Apply even pressure using a soft mallet or mounting sleeve to ensure balanced stress distribution.

3. Tighten with care: Lock set screws or eccentric collars with appropriate torque — over-tightening causes friction and overheating; under-tightening leads to loosening under vibration.

4. Test rotation: After installation, rotate the shaft manually to confirm smooth operation without jamming or abnormal resistance.

Maintenance: Extend Service Life Significantly

Proactive maintenance is the key to maximizing insert bearing lifespan. Follow these three golden rules:

Regular Lubrication

• Agricultural machinery (outdoor use): Re-grease every 200 operating hours.

• Workshop conveyors (indoor use): Clean seals and re-grease every 3 months.

• Harsh or heavy-duty conditions: Shorten intervals to 1–2 months.

Lubrication Do's and Don'ts

• Use water-resistant, wear-resistant, high-temperature lithium-based grease.

• Never mix different grease types — this causes performance degradation.

• For high-temperature environments, choose high-temperature grease; for humid conditions, select waterproof grease.

Regular Cleaning

• Clean seal areas regularly to prevent dust and debris buildup that can compromise sealing effectiveness.

Why Choose BCHH Insert Bearings?

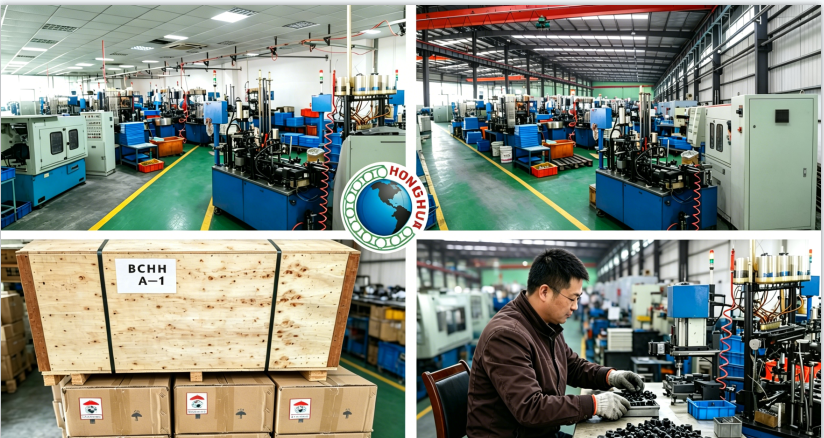

BCHH (Wuhan Honghao Machinery Co., Ltd.) has been a trusted global supplier of high-quality bearings, steel balls, and transmission parts since 2005. With ISO 9001 certification and over 20 years of precision engineering expertise, BCHH delivers manufacturing excellence that global clients rely on across Europe, North America, South America, the Middle East, and beyond.

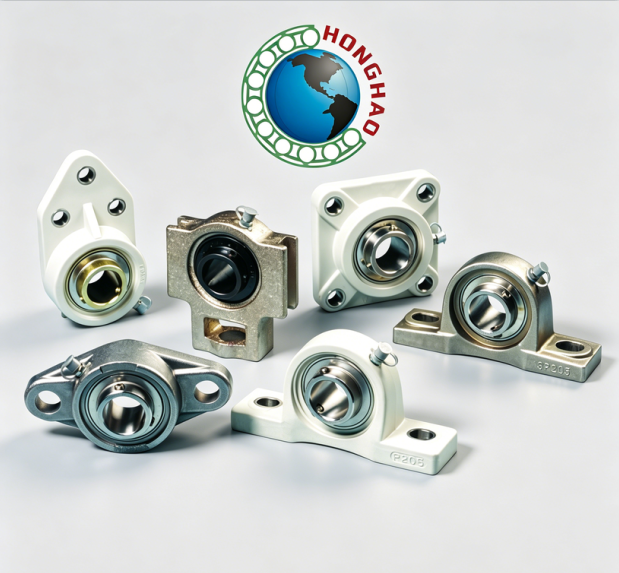

BCHH offers a comprehensive range of insert bearings and housed units — including UC, UK, UCP, and UCT series — engineered for reliable performance across agricultural machinery, conveyor systems, industrial fans, and more. Whether you need standard models or custom solutions for demanding environments, BCHH's engineering team provides technical support to help you select the right bearing for your specific application.

What sets BCHH apart:

•  ISO 9001:2000 certified quality management

•  20+ years of manufacturing and trading experience

• Comprehensive product range — deep groove ball bearings, tapered roller bearings, self-aligning ball bearings, insert bearings, and more

• Custom and non-standard bearing solutions available

• Global export network with competitive pricing

Final Thoughts

Insert bearings are indispensable components in agricultural and industrial equipment — but only when selected, installed, and maintained correctly. By matching the bearing to your working conditions, following proper installation procedures, and sticking to a regular maintenance schedule, you can dramatically extend service life, reduce downtime, and avoid costly replacements.
